Cylindrical Alumina Crucible with Top Holes – High-Purity, Thermal Stability, and Precision for Your Applications 🔥

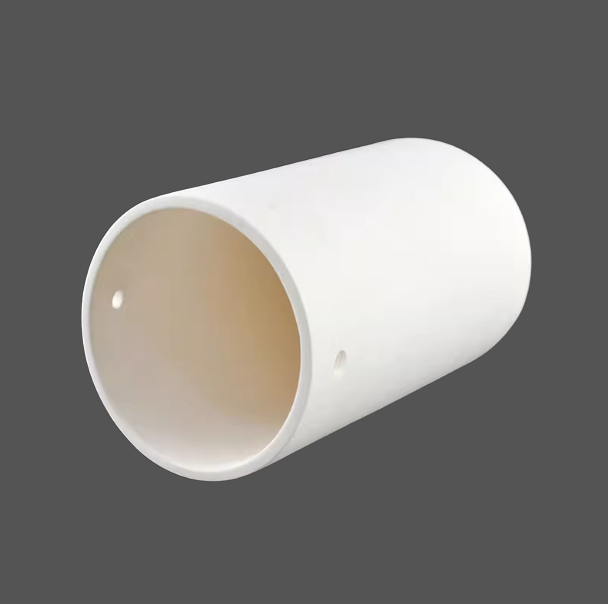

Our Cylindrical Alumina Crucible with drilled top holes is made from 99% pure alumina (Al₂O₃), ensuring high density, smooth surfaces, and excellent thermal stability for long-term use at temperatures up to 1600°C. Ideal for both laboratory and industrial applications, this crucible is designed to handle precise thermal control for melting, high-temperature processing, and more.

Key Specifications:

• Material: 99% Alumina Ceramic
• Maximum Temperature: 1600°C
• Dimensions (D × H): 110 × 195 mm
• Top Hole Diameter: 8 mm
• Wall Thickness: 6 mm
• Manufacturing Process: Slip Casting / Press Casting
• Firing Temperature: 1600°C

Applications:

• Laboratory and industrial analysis of metals and non-metals
• Melting and high-temperature processing
• Customizable for specific furnace setups

Usage Precautions:

• Pre-dry before use (105°C for 2 hours)
• Avoid direct flame (acetylene, alcohol, etc.)
• Maintain at least 2 cm distance from heating elements
• Gradual heating/cooling (≤ 5°C/min below 1200°C, ≤ 4°C/min above 1200°C)

Package: 10 pieces per pack
SKU: CX-AL-78001

For more details, reach out to CeramXpert. #CeramXpert #AluminaCrucible #ThermalAnalysis #HighTemperatureMaterials #LaboratorySupplies #IndustrialTesting #Ceramics #MaterialScience #PrecisionAnalysis #ThermalStability #CustomizableCrucibles #Alumina #CeramicCrucibles #LabEquipment #Manufacturing
